Product Details:
|
| Features: | Mid-speed Multi-function Placement Machine Capable To Adapt To Medium-speed Small-sized Components And High-precision Mounting Of Shaped Components | Payment Terms: | 20% Deposit - 80% Before Delivery |
|---|---|---|---|
| Application: | Mid-speed Multi-function Placement Machine | Model: | YV100X |
| Brand: | Yamaha | Condition: | Pre-owned/Reconditioned |
| Functionality: | Industrial Use - SMT Assembly Line | Packaging: | Wooden Box |
| Lead Time: | 15 Days | ||
| High Light: | Yamaha YV100X PCB SMT Machine,Yamaha YV100X Smt Placement Equipment,Multifunction Smt Placement Equipment |
||

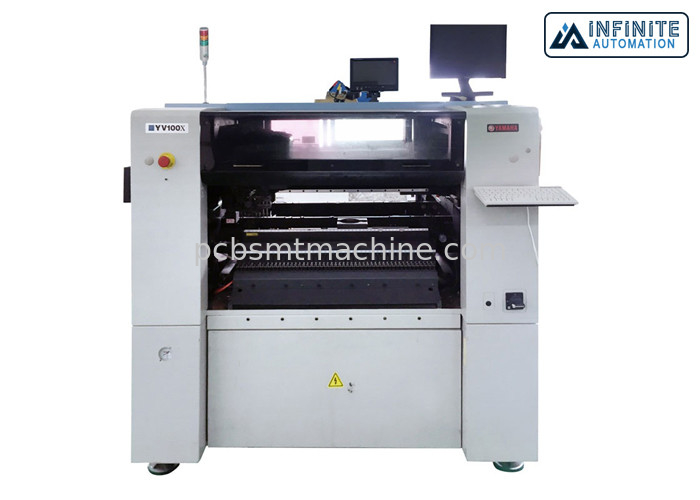

Yamaha YV100X PCB SMT Machine Mid Speed Multifunction SMT Placement Equipment
Infinite Automation Co., Ltd. is offering a pre-owned and reconditioned Yamaha YV100X mid-speed multi-function placement machine capable to adapt to medium-speed small-sized components and high-precision mounting of shaped components. Yamaha YV100X placement machine is using the latest Yamaha latest closed-loop technology and dual drive technology. Yamaha YV100X Multi-functional placement machine is using DOS operating system. This SMT mounting machine is equipped with a working head, 8 nozzles, 2 high-resolution multi-vision digital camera, optional with YAMAHA patented flight for the first move, Components from 0201 (British) micro-components to 32mm chip SMD components, including IC, QFP, SOT, SOP, SOJ, PLCC, BGA, and other components such as connectors can be mounted using Yamaha YV100X SMT Machine. Yamaha YV100X Mechanical structure is simple,a casting frame made to ensure durability and stability, the circuit control is not complicated, and designed for easy maintenance. The menu is relatively simple, easy to operate, can be easily modified stickers 1.2 m long LED light board. Yamaha YV100X YV100X mid- speed multi-function placement machine is suitable for small and medium batch production and with high-speed placement output.
Model: Yamaha YV100-X
MC Type: YV100X
Specifications:
| Model: Yamaha YV100-X |
| MC Type: YV100X |
| Theoretical Placement Speed: 18000CPH |
| PCB size: L460 x W445 mm (Max.), L50 x W50 mm (Min.)or L460 x W335 mm |
| Accuracy: +-0.1 mm(Chips), +-0.08 mm(QFP) |
| Mounting Speed: 0.198 sec/chips, 1.7 sec/QFP |
| Mounting angle: +-180°, per0.01° |
| Space for cassettes: 100 of 8mmTape, and 80 trays with YTF. (Option) |
| Available feeders: 8-56 mmTapes, Sticks, Bulks, Trays |
| Available Components: From 0.6mmX0.3mm to 32 mmX100 mm, Maximum component height 6.5 mm |
| Maximum mounting data: 10000 mounting line/ 1 production data, Maximum 500 production data in the hard disk. |
| Machine size: L1, 655XW1, 408XH1, 850 mm |
| Power Supply: 3-Phase AC 200/208/220/240/380/400/416 V +1-10% 50/60 Hz |
| Air supply: source 0.55 MPa or more,(4 to 6 Bar) in clean, dry states |
| Machine weight: 1,450 kg |
