Place of Origin:
China
Brand Name:
JUKI
Model Number:
RX-7
High Speed Compact Modular SMT Mounter Juki Pick And Place Machine

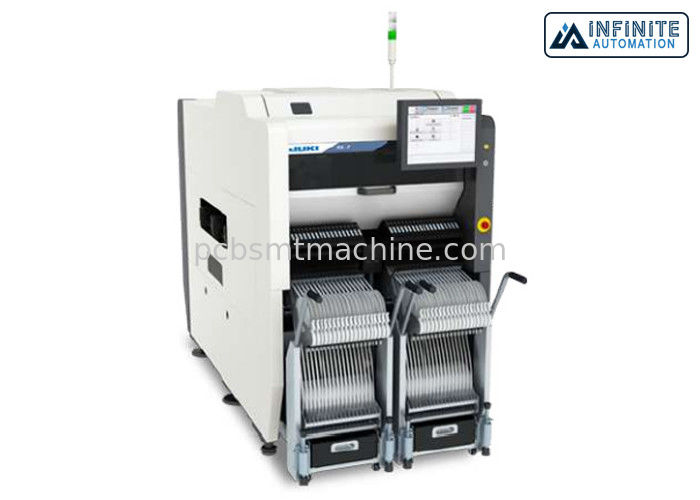

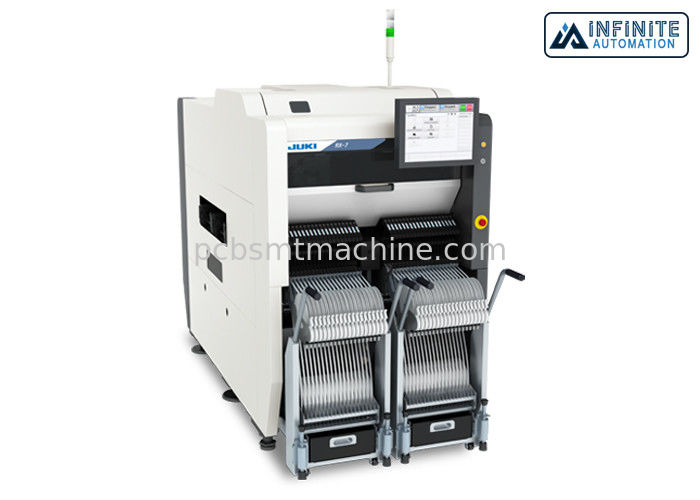

JUKI RX-7 High-Speed Compact Modular Mounter, Used And Fully Reconditioned Juki Pick And Place Machine
JUKI RX-7 High-Speed Compact Modular Mounter is unrivaled when it comes to productivity and speed. This Juki Pick and Place Machine have a Compact Footprint with Advanced High Speed and High Accuracy. This makes the RX-7 the most efficient Modular Chip-Shooter available today. The JUKI RX-7 Modular Mounter has three key features for efficient production - Super Rotary Head, Parallel Placement Heads, and Dual Lane Conveyor. This SMT machine has super-high productivity features and a super slim design.
Infinite Automation provides full SMT assembly line solutions, we offer brand new and best conditions second-hand/pre-owned SMT machines and equipment-Solder Paste Printer, SMT Mounter, AOI, SPI, Link Conveyors, Industrial Cleaners, and all factory automation products.
JUKI RX-7 High-Speed Compact Modular Mounter Features
Super-High Productivity
The RX-7 has three key features for efficient production:
Super Rotary Head, Parallel Placement Heads, and Dual Lane Conveyor
Super Slim Design
At only 988mm wide and with a placement speed of 49,000 CPH
(IPC9850), the RX-7 provides excellent placement per square foot
High Quality
The head-mounted centering camera can also detect tombstones, component presence/absence, and upside down components. Small components are placed accurately and reliably
Complete Line Solution
Whether it is high-volume or high-mix production that is required, JUKI has the solution for you! JUKI offers a complete range of SMT manufacturing line solutions designed to improve efficiency, quality, and reliability that will improve yields and maximize profit.
JUKI RX-7 High-Speed Compact Modular Mounter Specifications
| Specifications: High-Speed Compact Modular Mounter RX-7 | ||
| Board size | Single lane conveyor | 50 x 50 - 360 x 450 mm |
| Dual lane conveyor | 50 x 50 - 360 x 250 mm | |
| Component height | 3mm | |
| Component size | 0402 (01005) - 5mm | |
| Placement speed | Chip | 49,000 CPH (IPC9850) |
| Placement accuracy | ±0.04mm (Cpk ≥ 1) | |
| Feeder capacity | Max. 76 using dual-lane 8mm tape | |
| Power supply | AC 200 - 415v, 3-phase | |
| Apparent power | 3.3 kVA | |
| Operating air pressure | 0.5 ± 0.05MPa | |
| Air Consumption (standard) | 20L/min (during normal operation) | |
| Machine dimensions (W x D x H) | 998 x 1.895 x 1,530mm | |
| Mass (approximately) | 1,950kg | |
