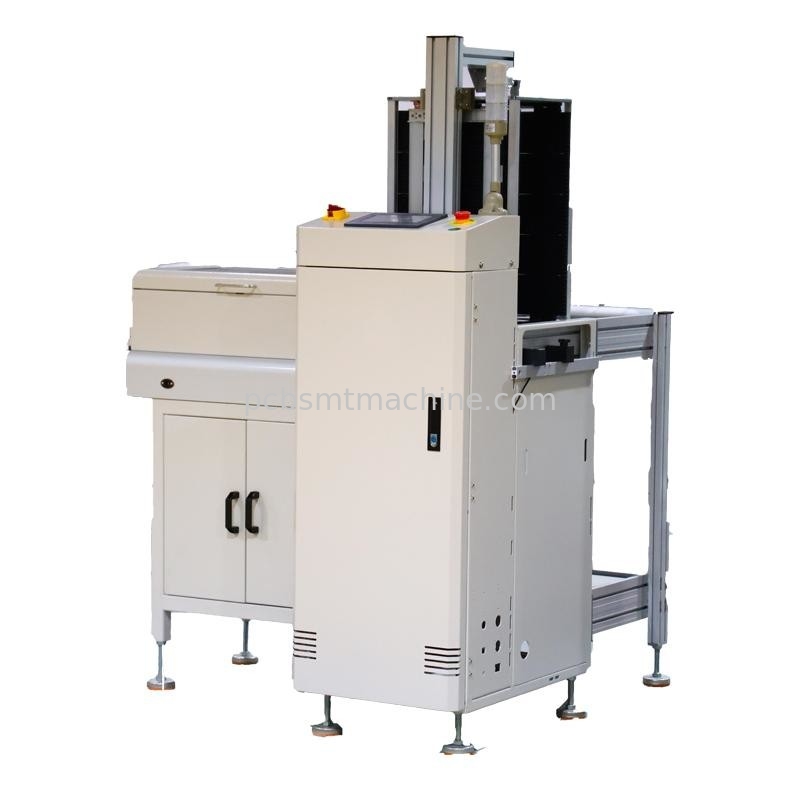

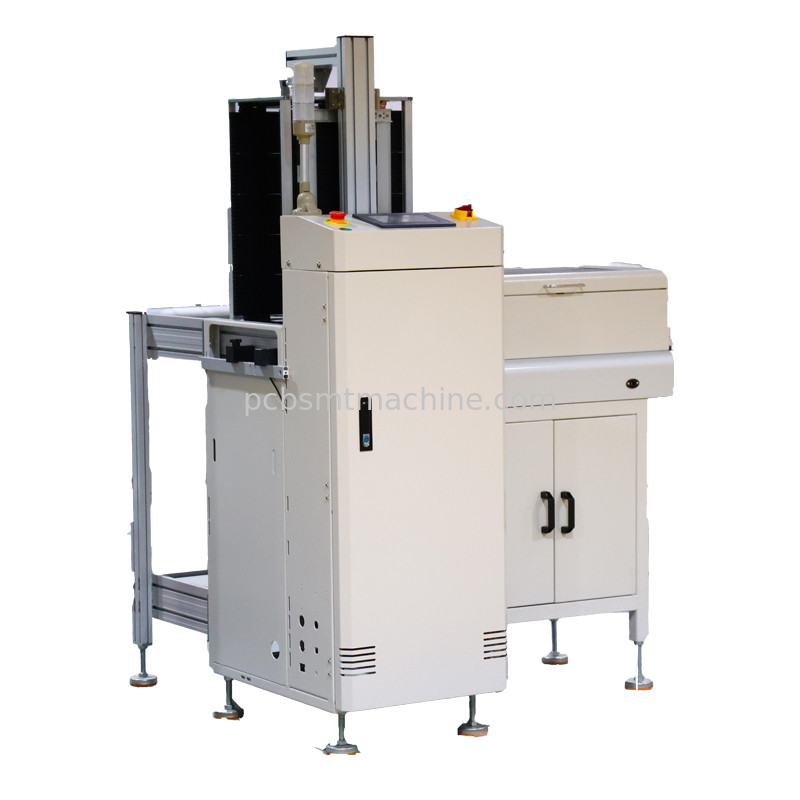

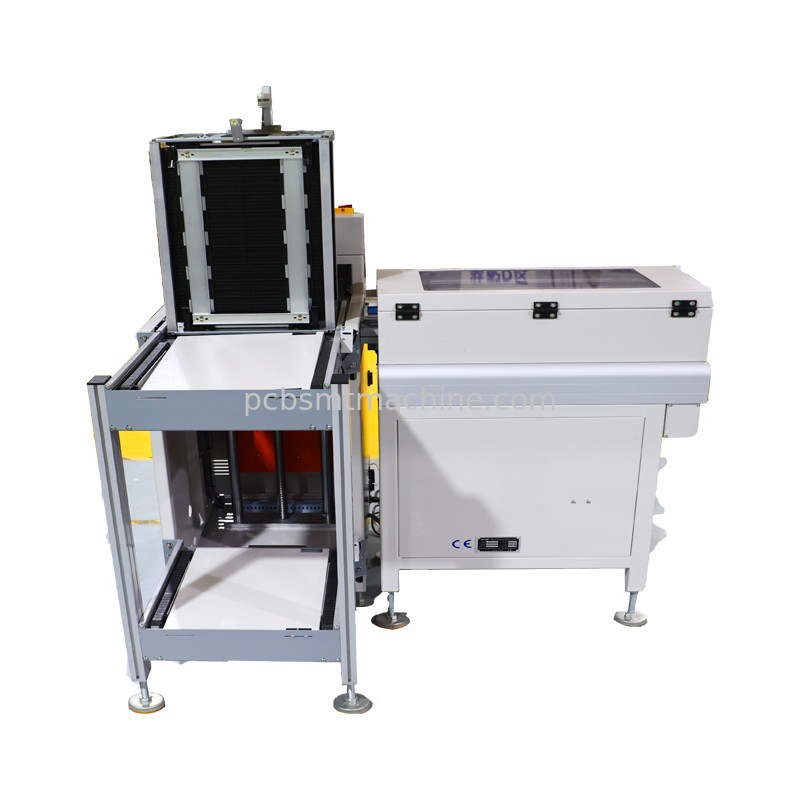

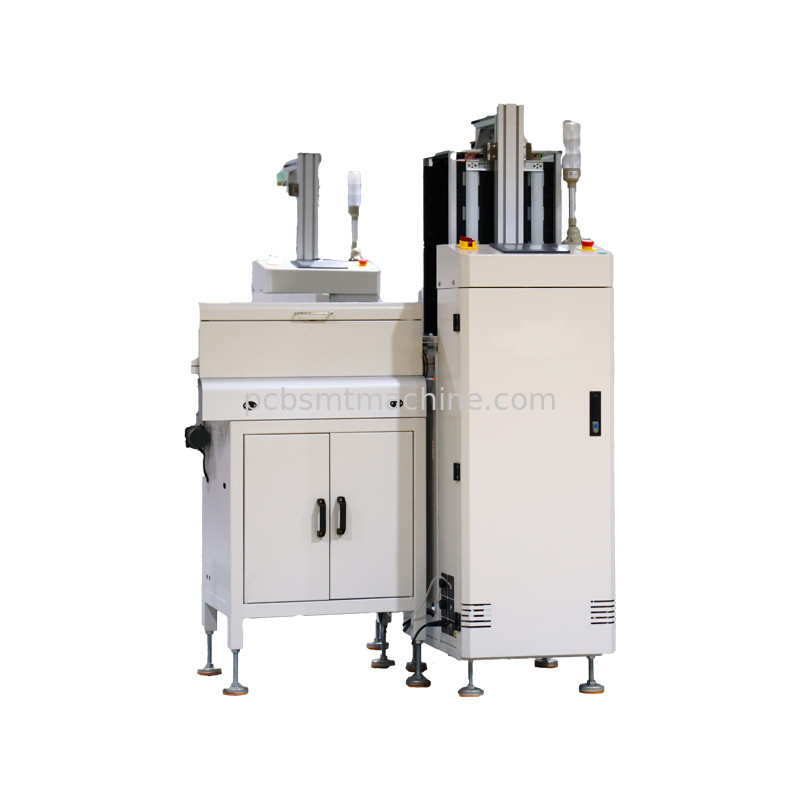

Magazine Type Buffer SMT Magazine Loader NG PCB Board Receiver
Magazine Type Buffer, NG PCB Or Memory Board Receiver, Modular Design

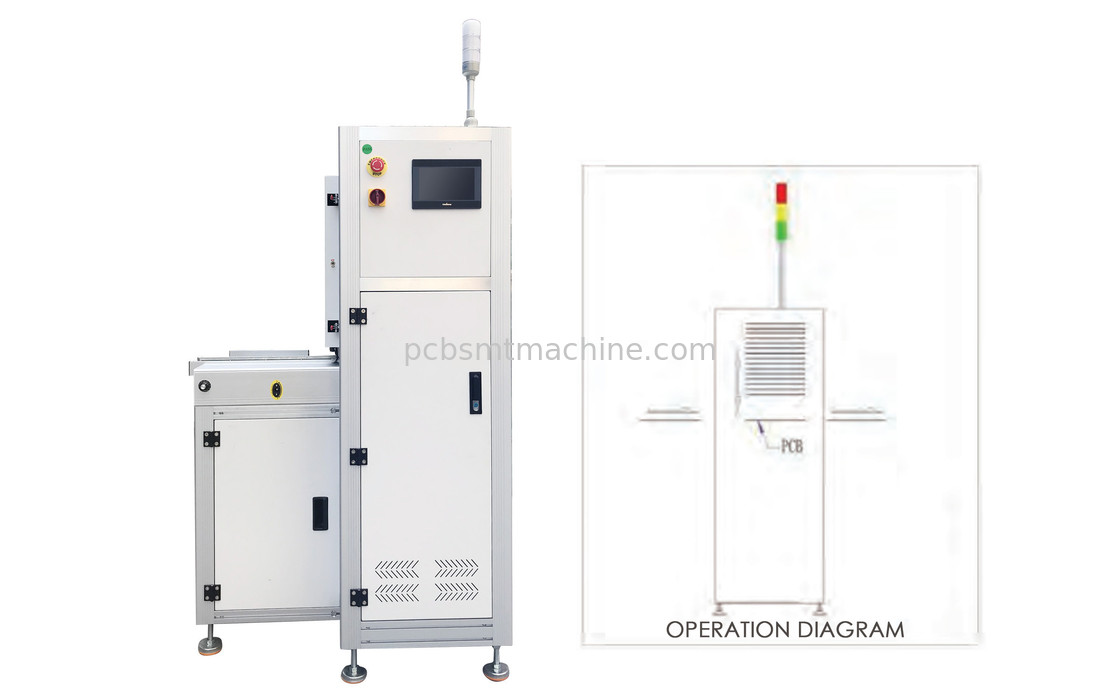

A Magazine Type Buffer is an SMT equipment designed for use to receive NG board or Memory. INFITEK Magazine Type Buffer is an SMT conveyor system used in the SMT Production Line. INFITEK Magazine Type Buffer is user-friendly equipment - a “soft touch” LED membrane control panel or touch screen can be selected. INFITEK Magazine Type Buffer has six (6) operation modes - FIFO, LIFO, upper board, lower board, NG board cache, and pass-through. This equipment is designed for fast, smooth, and accurate positionings of PCB. Equipped with a special gas circuit design that guarantees zero PCB breakage and with top & bottom pneumatic clamps to secure the magazine rack.
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is used for receiving NG board or memory board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Air pressure | 4-6bar,15ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | ||||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Rack size (L*W*H MM) | Weight (KG) |
| BM-M-TN | 1150*1150*1250 | 50*80-330*250 | 355*320*563 | 160 |
| BM-L-TN | 1350*1350*1250 | 50*80-445*330 | 460*400*563 | 220 |
| BM-LL-TN | 1550*1550*1250 | 50*80-530*390 | 535*460*563 | 280 |
| BM-XL-TN | 1550*1780*1250 | 50*80-530*460 | 535*530*563 | 300 |
