Place of Origin:
China
Brand Name:
INFITEK
Model Number:
H-QXD02-XL-TN, H-QXD02-XXL-TN
Video
Circuit Board Cleaning Machine SMT PCB Cleaner 50*50mm 445*350mm
Advance PCB Cleaning Machine SMT Automatic PCB Cleaner 50*50mm445*350mm

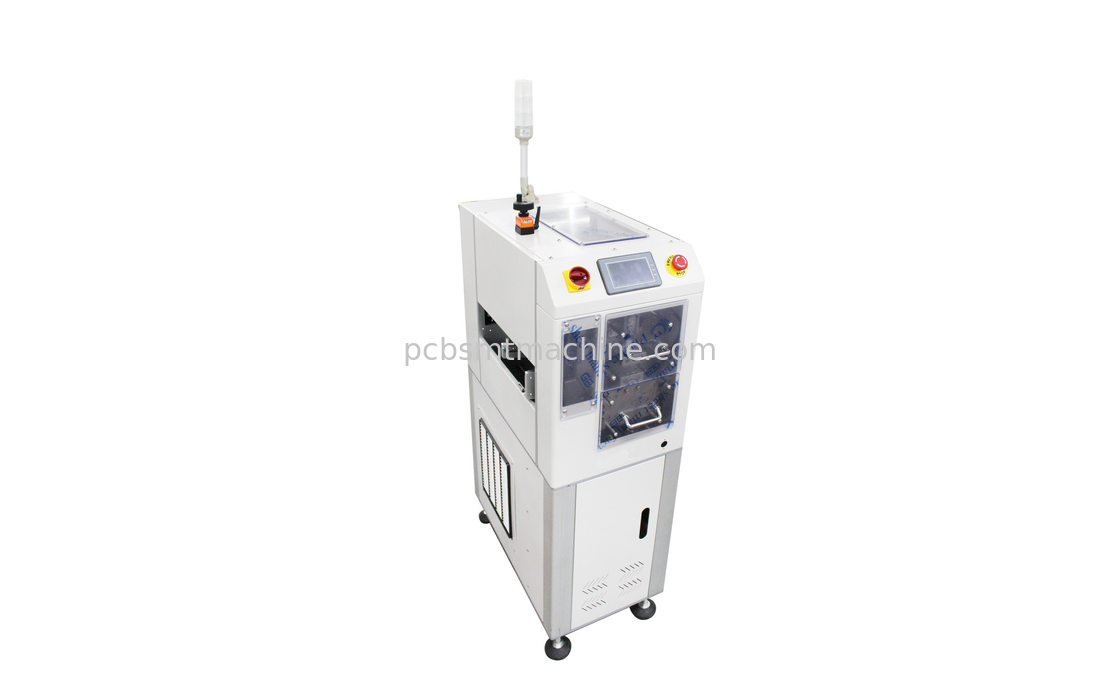

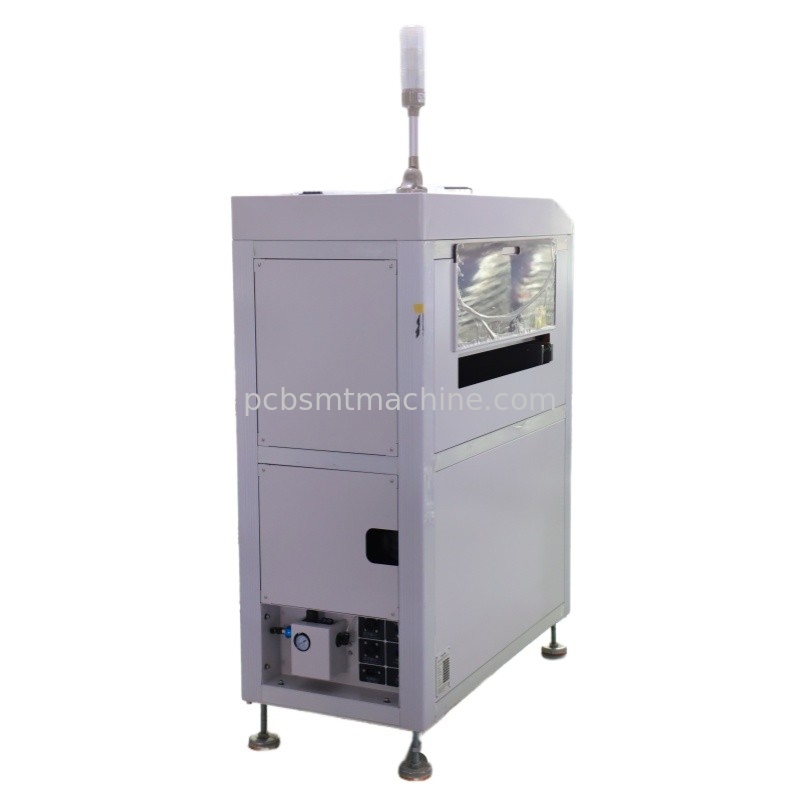

INFITEK Advance PCB Cleaning Machine is an online SMT Production Line equipment used to remove unwanted particles and dirt from the PCB surface to eliminate static electricity. Using a multiple dust removal design: ion air rod (blowing ion air) +1 group of spiral brushes + vacuum system +1 group of dust sticking drum + vacuum dust collection, the dust removal efficiency can reach 99%. This Online PCB Cleaning Machine can eliminate dust, oil, and any dirt. INFITEK Advance PCB Cleaning Machine is user-friendly equipment, using a touch screen controller for ease of operation. The fully enclosed design ensures operational safety level and a drawer design for easy maintenance.
Features:
| TECHNICAL PARAMETERS | |
| Description | This machine is used to remove unwanted particles and dirt from the PCB surface to eliminate static electricity |
| Speed | 0-9m/min adjustable |
| Power supply | AC1P110V/220V |
| Power | Max 300V |
| PCB thickness | 0.6-5mm |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| H-QXD02-XL-TN | 500*700*1195 | 50*50-445*350 | 120 |
| H-QXD02-XXL-TN | 500*810*1195 | 50*50-530*460 | 140 |
