TR7700 SIII Plus

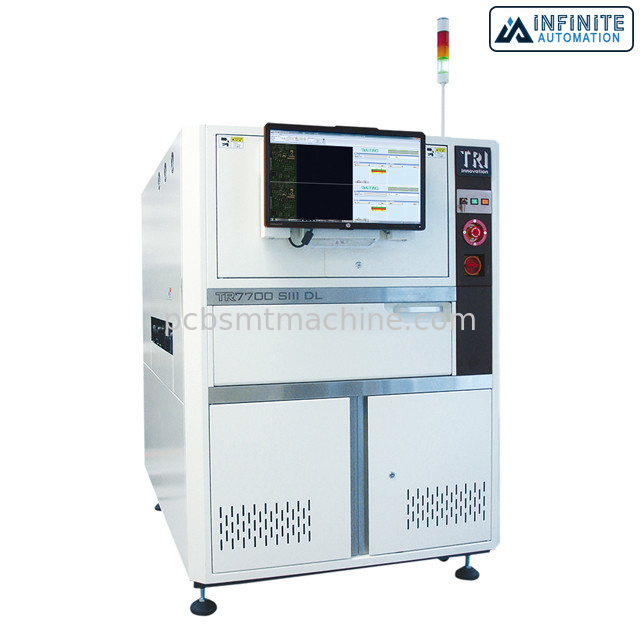

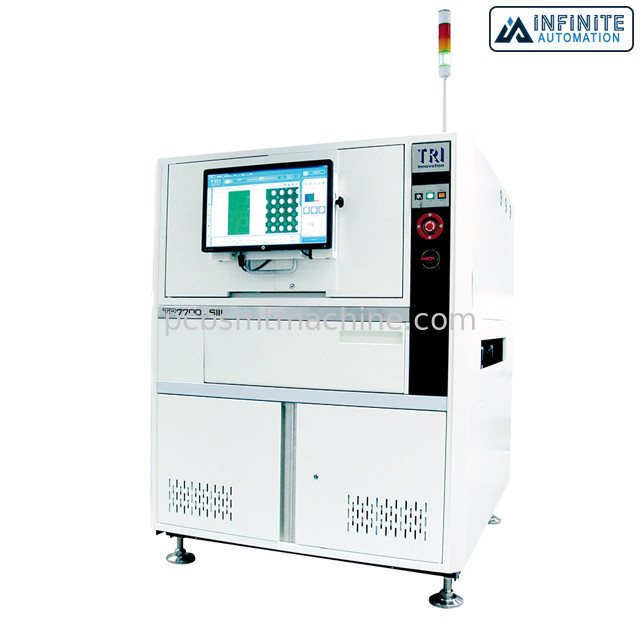

TR7700 SIII Plus 3D Ultra High Precision SMT Inspection Machine 3D AOI
TR7700 SIII Plus 3D Ultra High Precision 3D AOI, 3D Automated Inspection Machine (AOI), Pre-owned and Reconditioned AOI machines
TR7700 SIII Plus is the newest generation of TRI's AOI solutions, delivering precise multi-phase inspection at full speed. By combining an ultra-fast camera, intelligent auto conveyor, and new GUI, the TR7700 SIII Plus offers a powerful and easy-to-use AOI solution with fast programming, optimized board loading, production line integration, and support for offline programming. TRI's new color algorithm combined with multiple lighting phases increases defect coverage and helps deliver highly accurate inspection results with a minimum of false calls.
Infinite Automation offers a wide range of pre-owned SMT machines. We offer SMT printers, chip mounters, AOI, reflow ovens, cleaning machines, link conveyors, and other SMT factory automation machines and equipment.
Features
• High precision full speed multi-phase AOI
• New GUI for easy programming with offline editing
• Intelligent auto conveyor for reduced load times
• New color algorithm delivers high accuracy and minimizes false calls
Specifications
| Imaging Method | Dynamic Imaging |
| Top Camera | 4 Mpix |
| Angle Camera | N/A |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase RGB+W LED |
| 3D Technology | Single/Dual 3D laser sensors (optional) |
| Max. 3D Range | 20 mm (with 3D Laser Sensor upgrade optional) |
| Imaging Speed | 4 Mpix@ 10 µm 2D: 60 cm²/sec 4 Mpix@ 15 µm 2D: 120 cm²/sec 4 Mpix@ 10 µm 2D+3D (optional): 27-39 cm²/sec 4 Mpix@ 15 µm 2D+3D (optional): 40-60 cm²/sec Note: Depending on board size and laser resolution |
| X-Axis Control | Ballscrew + AC-servo controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | N/A |
| X-Y Axis Resolution | 1 µm |
| Max PCB Size | TR7700 SIII Plus: 510 x 460 mm TR7700L SIII: 660 x 610 mm TR7700 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | TR7700 SIII Plus: 3 kg TR7700L SIII: 5 kg TR7700 SIII DL: 3 kg |
| Top Clearance | 25 mm [48 mm optional] |
| Bottom Clearance | 40 mm |
| Edge Clearance | TR7700 SIII Plus: 3 mm [5 mm optional] TR7700L SIII: 5 mm TR7700 SIII DL: 3 mm [5 mm optional] |
| Conveyor | Inline Height: 880 – 920 mm * SMEMA Compatible |
| Component | Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material |
| Solder | Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
| WxDxH | TR7700 SIII Plus: 1100 x 1670 x 1550 mm TR7700L SIII: 1300 x 1635 x 1655 mm TR7700 SIII DL: 1100 x 1670 x 1550 mm Note: not including signal tower, signal tower height 520 mm |
| Weight | TR7700 SIII Plus: 1080 kg TR7700L SIII: 1240 kg TR7700 SIII DL: 1150 kg |
