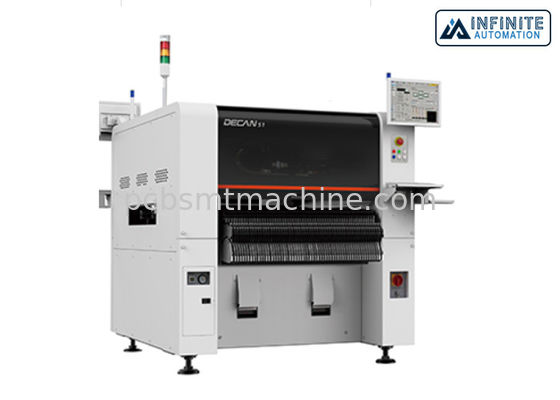

47000CPH Original And Used Hanwha DECAN S1 SMT Placement Machine

Hanwha DECAN S1, 47,000 CPH, Original and Used SMT Pick and Place Machine

Hanwa Decan S1 is a fast and flexible SMT mounter. This flexible SMT mounter can provide optimum productivity necessary for batch production by visibly improving three indicators of a chip mounter. Hanwa Decan S1 flexible mounter helps improve actual productivity, placement quality, and reduces component loss rate. Hanwa Decan S1 is capable of reaching up to 47,000 CPH maximum speed and is applicable from 50mmx50mm to 1,500mmx460mm PCB sizes.

Features:

Flexible Production

Highest Applicability of Medium Speed Chip Mounters to PCBs

510 x 510mm (standard) / 1500 x 460mm (optional) - Possible to produce PCBs of up to 1,500mm(L) x 460mm(W) in size

High Reliability

Places Microchips Stably

Performs automatic calibration during production to keep placement accuracy constant Maintains pickup and placement quality with the Nozzle Maintenance Unit

Productivity

Highest Performance among Chip Mounters of the Same Class

Increases the component recognition range using a high-pixel camera Increases simultaneous pickup rate and odd-shaped component placement speed

Easy Operation

Increases Operational Convenience

Teaches a large odd-shaped component easily and reduces teaching time Equipped with the function to unify the lighting level of chip components and maintains the pickup coordinates of common feeders

Specifications:

Alignment Fly Camera + Fix Camera

Number of spindles10 spindles x 1 Gantry

Placement Speed47,000 CPH (Optimum)

Placement Accuracy±28μm @ Cpk≥ 1.0 (Chip) / ±30μm @ Cpk≥ 1.0 (IC)

PCB Size (mm)50(L) x 40(W) ~ ~ Max. 1,500(L) x 460(W) (Option)
