Place of Origin:
China
Brand Name:
INFINITE™
Model Number:
A Series Static Mixing Tube
A Series Static Mixer, 2 Component Static Mixing Accessories

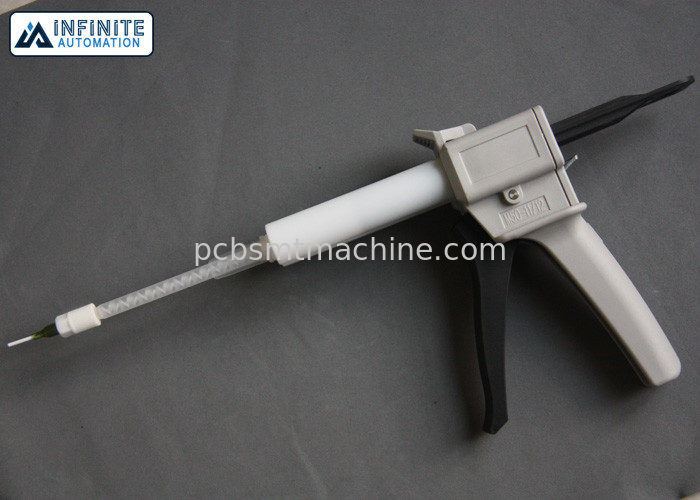

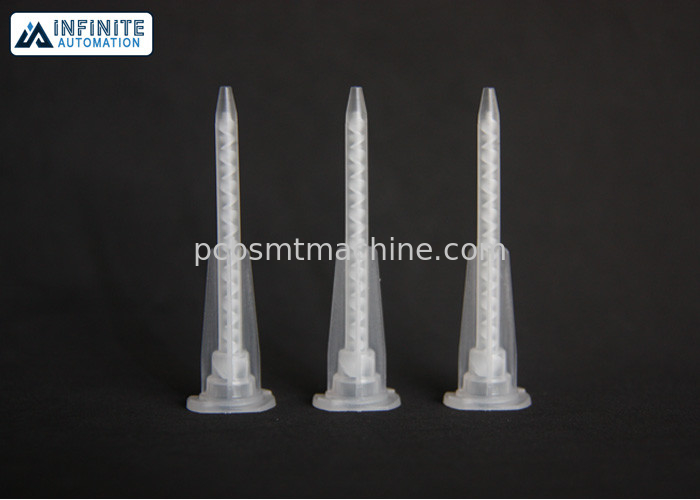

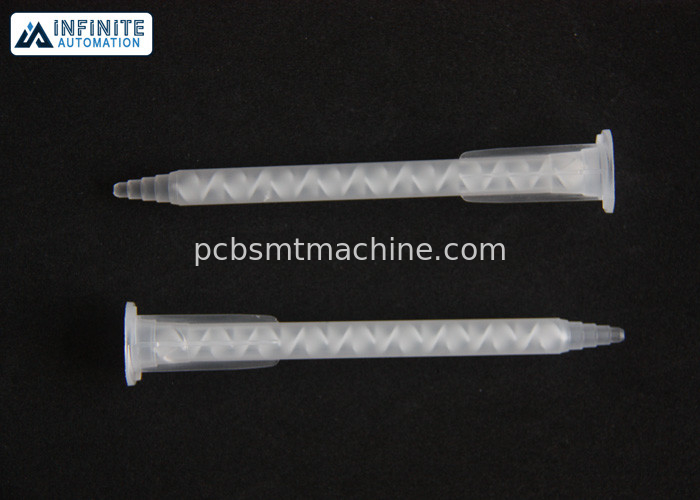

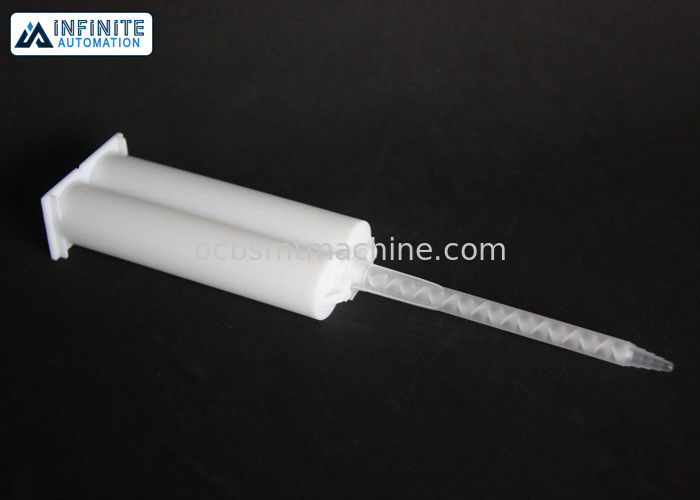

The MT A series mixing tube is the most common product used with glue application. The cassette interface is suitable for 50 series AB glue cartridges. It is also commonly used to interface correct dispensing valves and dispensing nozzles. The positive and negative spirals in the mixing tubes can easily mix “A” glue and “B” glue evenly. The degree of mixing uniformity is closely related to the degree of professionalism in the production process. The use of mixing tubes provides a low-cost solution for two-component liquid mixing . The use of static mixing tubes can save labor, reduce waste, greatly increase productivity, and in reducing production costs.
Infinite Automation offers the best quality and cost-effective 2 component Static Mixing Accessories.
A SERIES STATIC MIXER SPECIFICATIONS:
Parameter Table: Length Unit: mm / Capacity Unit: ml
| Item No. |
Part Number | Inner Diameter |
Outer Diameter |
Sections | Length | Caliber | Capacity |
| 1 | MT-DA307 | 3 | 4.6 | 7 | 33.2 | 1 | 0.19 |
| 2 | MT-DK308 | 3 | 4.6 | 8 | 38 | 1 | 0.19 |
| 3 | MT-DA317 | 3 | 4.6 | 17 | 62.2 | 1 | 0.34 |
| 4 | MT-DA317-JC | 3.14 | 5.14 | 49 | 155 | 0.78 | 0.53 |
| 5 | MT-DA4175 | 4 | 5.8 | 17 | 81.6 | 2 | 0.75 |
| 6 | MT-DA5075 | 5.26 | 7.06 | 7 | 55.98 | 1.14 | 1 |
| 7 | MT-DA5175 | 5.4 | 7.6 | 17 | 103.6 | 1.5 | 1.68 |
| 8 | MT-DA517L | 5.5 | 17.55 | 17 | 106.1 | 1.3 | 1.68 |
| 9 | MT-DN608-JT | 6.35 | 8.92 | 8 | 78.64 | 1.02 | 1.9 |
| 10 | MT-DA6125 | 6.3 | 8.7 | 12 | 97 | 1.5 | 2.08 |
| 11 | MT-DA621s | 6.3 | 8.7 | twenty one | 153 | 1.5 | 3.57 |
| 12 | MT-DA621L | 6.3 | 8.7 | twenty one | 151.5 | 4.9 | 3.33 |
