Samsung R AXIS DRIVER MD5 HD14 3X J31521016A

Samsung R AXIS DRIVER MD5 HD14 3X J31521016A

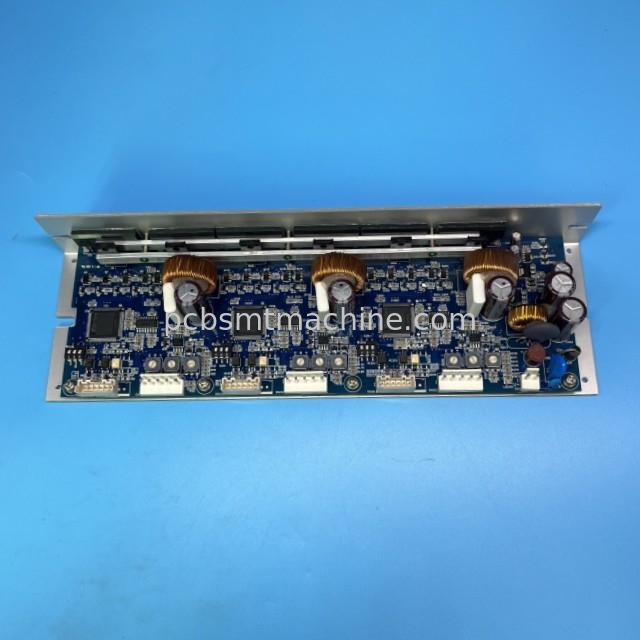

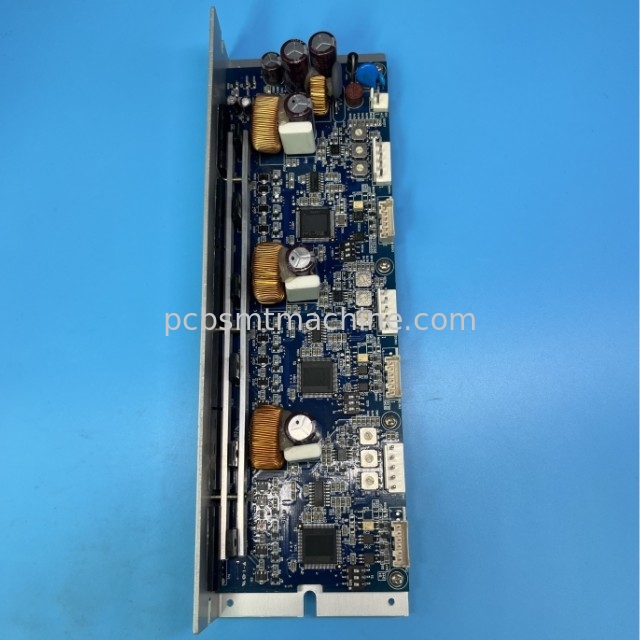

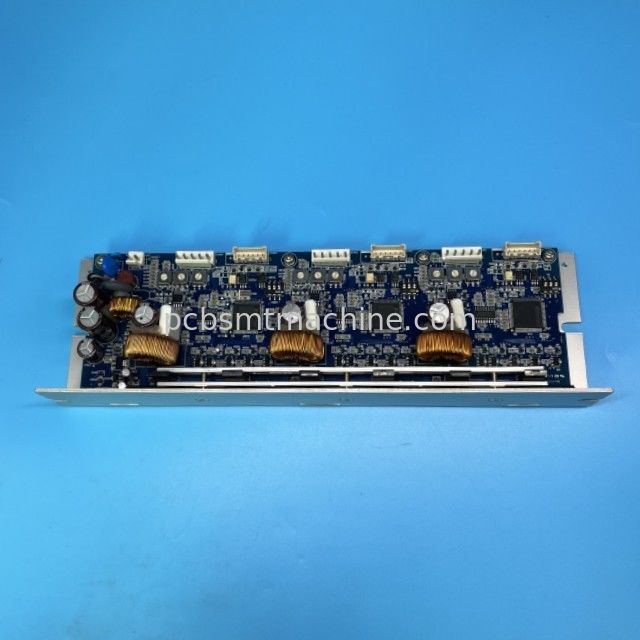

The R AXIS DRIVER MD5 HD14 3X J31521016A is a sophisticated multi-axis stepper motor driver designed to deliver precise and smooth motion control in various industrial applications. It operates using a bipolar constant current pentagon drive method, which is known for reducing motor vibrations and noise, thus enhancing performance1.

Here are some key features of the MD5 HD14 3X:

Applied Motor: Compatible with 5-phase stepper motors.

Resolution: Offers a wide range of resolutions from FULL STEP (1-division) to Micro STEP (up to 250-division), allowing for fine-tuned control of motor movements.

Power Supply: Operates on a 20-35VDC power supply, with a maximum run current of 1.4A/Phase.

Max. Input Pulse Frequency: Can handle up to 500kHz, enabling high-speed operations.

Environmental Resistance: Designed to function optimally within a temperature range of 0 to 40℃ and a humidity range of 35 to 85% RH1.

This driver is particularly suitable for applications requiring low-speed rotation and high-accuracy control. With its advanced features, the MD5 HD14 3X ensures reliable and efficient operation, making it a valuable component in precision-driven systems1.

For orders and inquiries, please visit Infinite Automation website.
