Place of Origin:
China
Brand Name:
Infitek
Model Number:
MT-YS-100

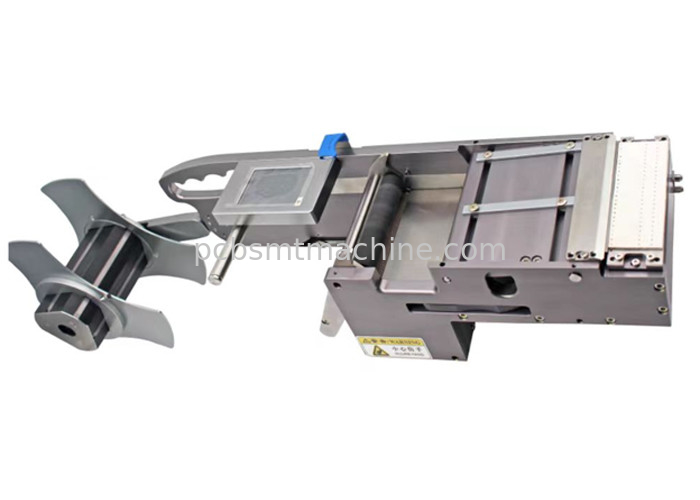

Label Feeder applicable for Yamaha YS/YSM Series Pick and Place Machine
Infinite Automation offers high-quality Label Feeders tailored for seamless integration with Yamaha YS and YSM series SMT (Surface Mount Technology) machines. These Label Feeders are meticulously crafted to enhance the efficiency and productivity of manufacturing processes within the realm of surface mount technology.
Catering specifically to the Yamaha YS12, YS24, YSM24, YSM10, YSM20, and YSM20R models, the Label Feeders from Infinite Automation are engineered to meet the precise requirements and standards of these renowned SMT machines. Through advanced design and engineering, these feeders ensure compatibility and optimal performance when utilized in conjunction with Yamaha's machinery.
The compatibility of the Label Feeders with the Yamaha YS and YSM series SMT machines signifies a seamless and hassle-free integration process, reducing setup time and enhancing operational efficiency. This seamless compatibility also contributes to the overall reliability and stability of the production line, ensuring consistent and accurate labeling processes.
Furthermore, the versatility of the Label Feeders allows for a wide range of applications, accommodating various labeling needs and production requirements. Whether in the electronics, automotive, medical, or any other industry requiring precise labeling on PCBs or components, these feeders offer a reliable solution for streamlining manufacturing processes.
In conclusion, Infinite Automation's Label Feeders for Yamaha YS and YSM series SMT machines stand as a testament to precision engineering and seamless integration capabilities. By catering to specific Yamaha models and offering versatility in applications, these feeders play a crucial role in enhancing efficiency, accuracy, and overall operational excellence in the realm of surface mount technology.
| Feeder Basic Parameter | |
| Material | Hard Aluminium + Finishing |
| Fixed Mode | Double pin positioning, guide rail, tongue hook |
| PC Link | External power supply |
| Voltage | DC 24V |
| Average Current | 1A |
| Peak Current | 2A |
| Vacuum Absorption | 0.4~0.6 MPa (Selectable) |
| Software | Independently Developed |
| Hardware | Customized control and driver integration based on ARM |
| Controller | Touchpad and Parameter setting |
| Working Mode | Hand/Auto/lO Mode |
| Driving Motor | Stepping Motor |
| Labels Positioning | Optical fiber positioningPulse compensation |
| Max Speed | 100mm/s |
| Feeding Precision | X-axis direction ±0.1, Y-axis direction ±0.1 |
| Applicable Package | Roll paper tape, Packaging Tape |
| Suitable Type | Labels, Metal Pieces, Foam, Plastic... |
| Single/multiple row labels | ≤ 12 pcs/Row |
| Label Size | Single Min:2x2mm,Thicknessz0.02mm |
| Drive Roller Unit | Forward push stripping |
| Refueling Method | Stop and Manual Operation |
| Waste Recovery | Selectable |
| Lack of material | Alarm and Stop |
| Drop Collision Test | Shell 0.5KG/cm?, no abnormality |
| Aging Test | Continuous working 48H without Error |
| Work Record | Completely consistent |
| Useful life | 3-5 Years |
| Wheel Diameter | Inner diameter d:3 in/76.2 mm Outside diameter D: max.8in/200 mm (Other sizes ordered) |
| Platform Material | White Silica qel (Black/Red/Metal spray selectable) |
