Place of Origin:
China
Brand Name:
Infinite
Certification:
CE
Model Number:
MT-765

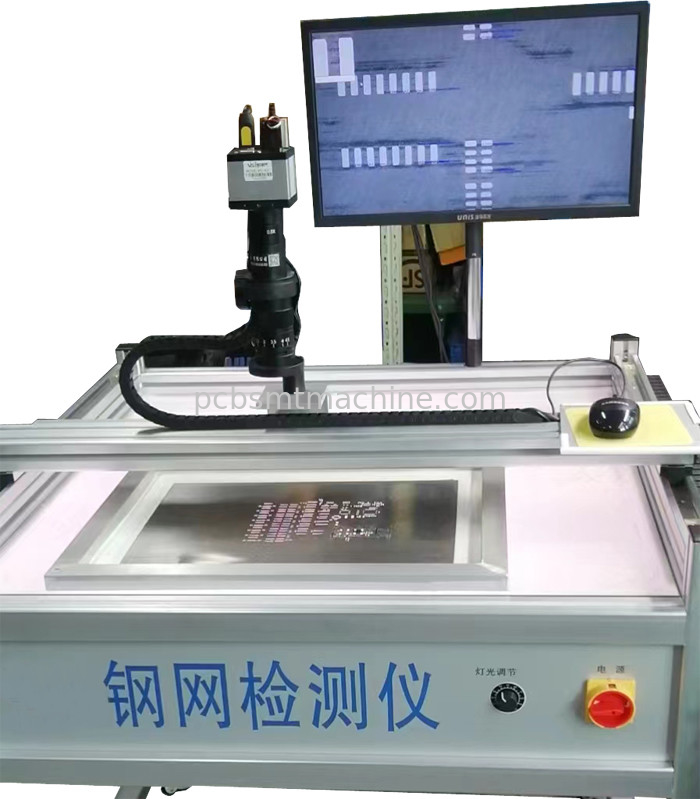

INFITEK MT-765 Stencil Inspection Machine capable of generating inspection report - using VSC-65c Measurement Camera
The INFITEK MT-765 Stencil Inspection Machine is a stencil inspection machine that is capable of generating an inspection report that can be translated into an XL file and read on a computer. The INFITEK MT-765 Stencil Inspection Machine uses a VSJ-65c Measurement Camera and has an X and Y axis arm to move the camera freely while inspecting the PCB Stencil. The VSJ-65c Measurement Camera is a 4.5X and 2D camera capable of storing pictures and inspection readings on a USB device that can be saved in XL file format and read on any computer with an XL file reader. This Inspection machine can inspect a PCB Stencil with a maximum size of 765mm*765mm and an inspection area of 600mm*600mm.
Machine Description: Stencil Inspection Machine
Brand: INFITEK
Model: MT-765
Camera
Brand: VSJ
Model: 65C
Camera Specifications: 2D, 4.5X
Inspection Area
Table Size: 800mm*800mm
Max Stencil Size: 765mm*765mm
Max Inspection Area: 600mm*600mm
1. Easy to use and easy to operate.
2. Simple interface - one interface to complete all operations. Divided into 4 zones. The ribbon is subdivided into 5 columns.
